NAXSO BROCHURE

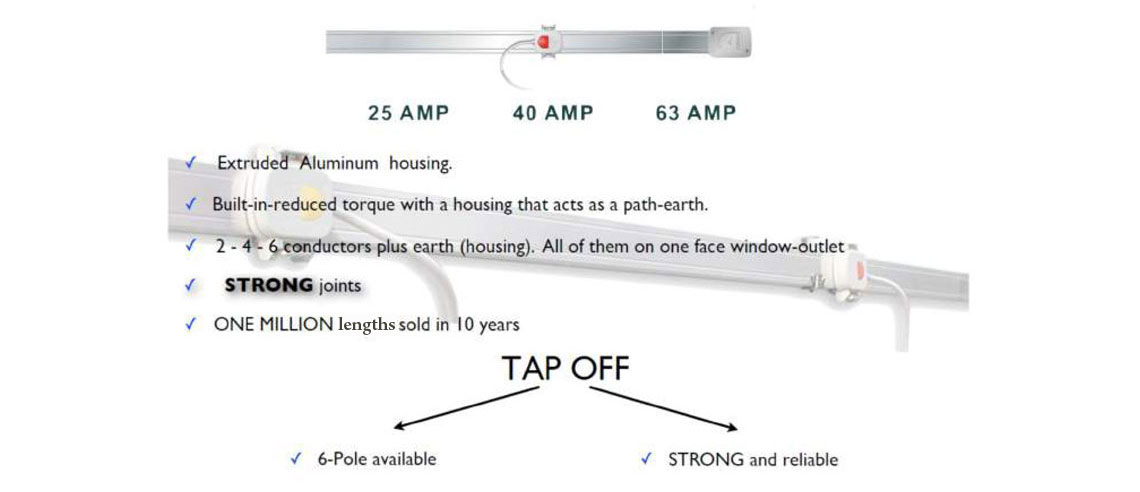

lighting

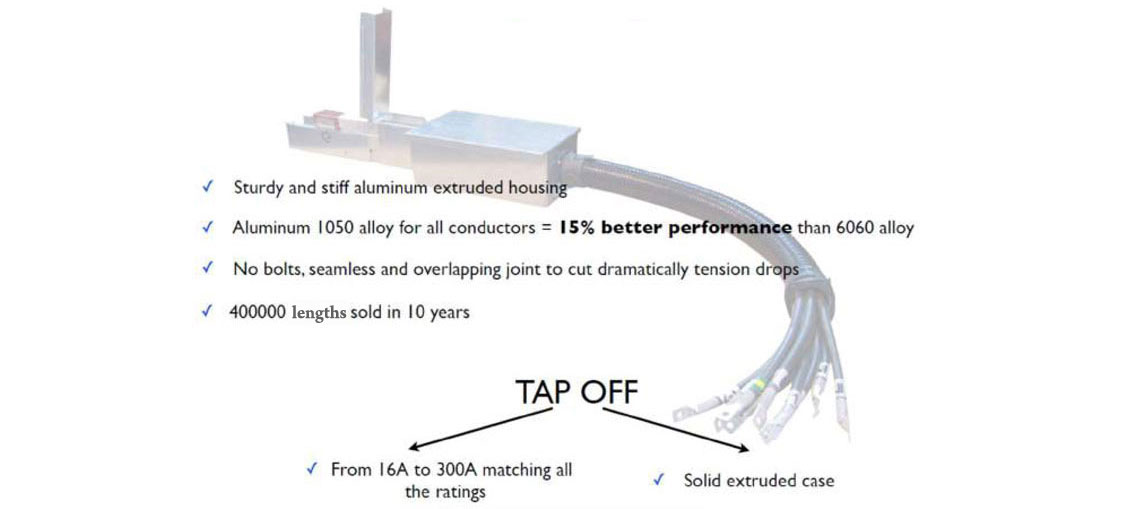

power

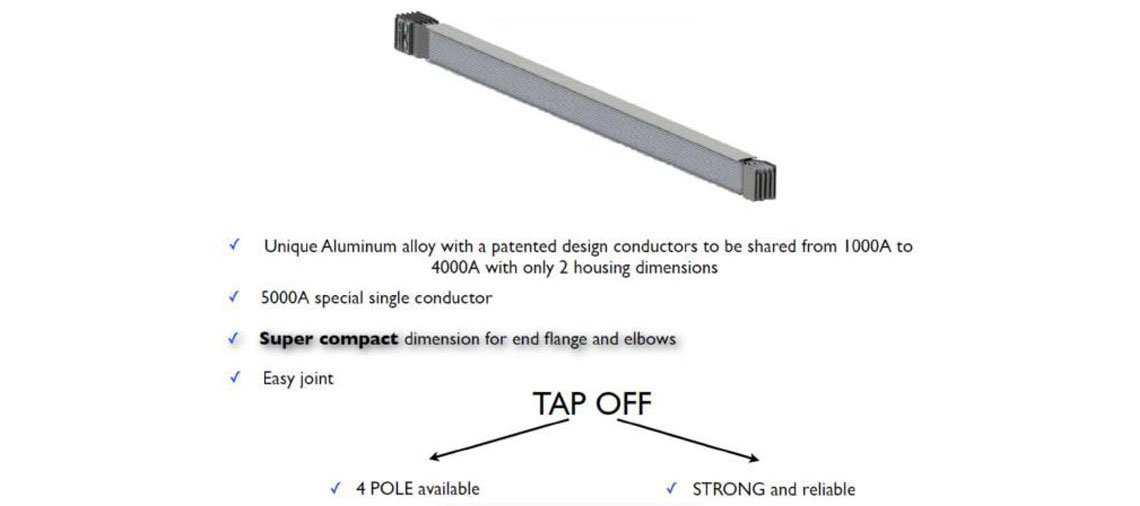

sandwich





Advantages

  • Busbar systems need less space than cable systems, especially for high ampere rates
  • Busbars have sheet metal body. This helps transferring the generated heat out through metal housing. Cooling is better than cable systems.
  • Busbar systems do not burn, do not carry flames and do not generate poisonous (halogen, etc.) gas incase of fire. Cable systems can burn and enable fire to split out in the buildings
  • With robust structure, short circuit stand is much higher than cable systems (For example; for 3000A busbar 264 kA peak and 120kA/rms)
  • The compact structure and steel sheet housing allows much lower electromagnetic field around busbar system than cables. High current rated busbars (4000A-5000A) can be safely installed by the data cables
  • Busbar systems have lower voltage drop compared to Cables

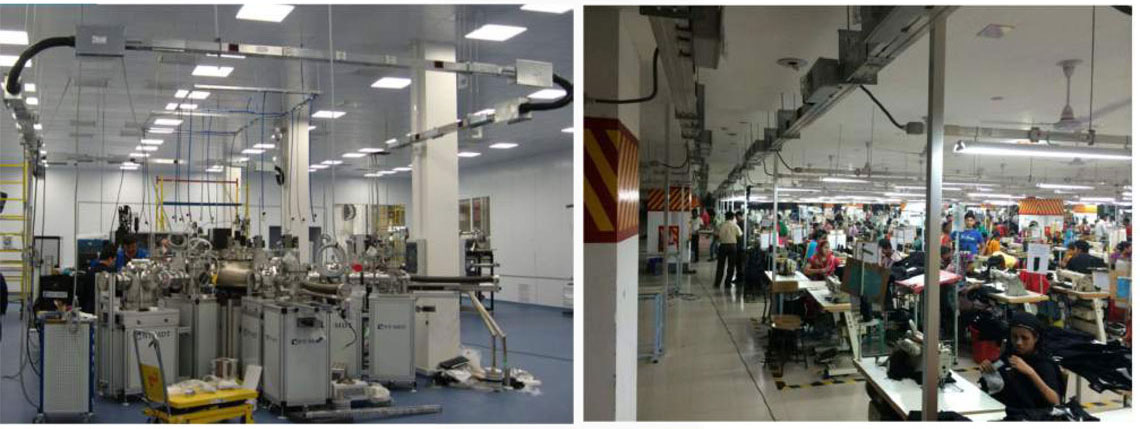

  • Reduce number of CABLE TRAYS & DISTRIBUTION BOARDS. It is possible to feed loads (machinery, floors, etc.) directly with tap-off boxes, Reduce the DIMENSIONS of MAIN PANEL BOARDS - Reduce number of the MCBs
  • Busbar systems are consisted of fully certified standard elements and designed to eliminate possible human mistakes.
  • Busbars cannot be bitten and damaged by various rodents which may live in the buildings.
