active harmonic filters
HOME
Electrical EQUIPMENT
General Information

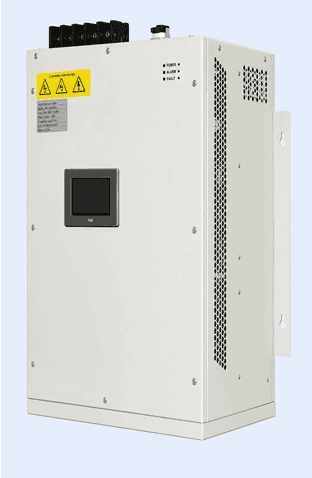

Active Harmonic Filter operates on the base of a three-level topology circuit,
providing power quality solutions such as harmonic elimination, stepless power factor correction,
and load balancing. The AHF module capacity of AHF modular ranges from
30A to 150A and allows up to
20 modules to connect in parallel, enabling users to easily achieve the target
filter current capacity.
Product Value
- Eliminate the harmonic current of nonlinear loads.
- Improve the operating efficiency of the power system and reduce the downtime of the power
distribution system, especially for low-voltage systems with frequent load upgrades. - Meet the strict requirements of utilities for electrical energy quality, avoid fines and
power supply interruptions caused by electrical quality problems, and reduce carbon dioxide
emissions.
Features
- Harmonic compensation up to 50th harmonic
- Fast reactive power compensation
- Load balancing between phases and unloaded neutral wire
- Compact design, 3 level topology
- Modular system extendable
- Grid resonance detection
- Hardware/software prevent resonance
- Dual DSP + FPGA Architecture
- Leading algorithm, fast response
- Accurate compensation
- User-friendly HMI
- High performance and reliability
- Insensitive to network conditions
Typical Applications
Fast harmonic and reactive power compensation, eliminating 3rd and multiples of 3rd harmonics, reducing neutral current.
- Data Center and UPS System
- PV and Wind Power Generation
- Single Crystal Silicon & Semiconductor Manufacturing
- Industrial Production Machines
- Electrical Welding Systems
- Extrusion & Injection Molding Machines
- Office Buildings and Shopping Malls
Safety Features
- Highest Safety and Reliability
- Overload Protection
- Internal Short-Circuit Protection
- Overheating Protection
- Overvoltage & Undervoltage Protection
- Inverter Bridge Protection
- Resonance Protection
- Fan Fault Alarm
